How to refactor an IBM Mainframe application as a highly scalable application on a fully managed serverless platform using Google Cloud App Engine.

January 1st, 2020

Serverless computing offers incredible agility. In these environments, you can truly focus on building the application without the need to design, procure, deploy & manage an application infrastructure. Outside of the cloud, that takes a lot of work. Making it highly-available and able to scale out & back on-demand, makes the task an order of magnitude more complex (and expensive).

No alt text provided for this image

Jules Winnfield may think there’s no way for your trusted mainframe applications to exploit a serverless compute platform, but he would be wrong (not sure I’d tell him that though). Below, I will show you how it can be done, and you may even be surprised at how fast & easy it is. Of course, this is a demo, so the workload is pretty small, i.e. for illustration, but we have many clients where the workload is in the multi-thousand MIPS range.

Because we can deploy to cloud-native scalable platforms, the size of the workload is not typically a major factor for the transformation project.

Prerequisites: Heirloom Account and a Google Cloud Account. Let’s assume that you’ve taken the steps to download & install the Heirloom SDK, the Google Cloud Eclipse plugin, and the Google Cloud SDK.

Here’s how it’s done. Recompile, package, setup, deploy & execute.

Recompiling the COBOL/CICS application into a Java .war package

The key steps here involve using the Heirloom SDK to recompile the COBOL/CICS application into Java and packaging it into a .war package so it can be deployed to any industry-standard Java Application Server. I covered this in a previous article that targeted the deployment to Pivotal Cloud Foundry, so I won’t repeat the steps here.

Setup, Deploy & Execute … Google App Engine (GAE)

STEP 1: Setup. Setting up a new application in GAE is very easy.

No alt text provided for this image
No alt text provided for this image

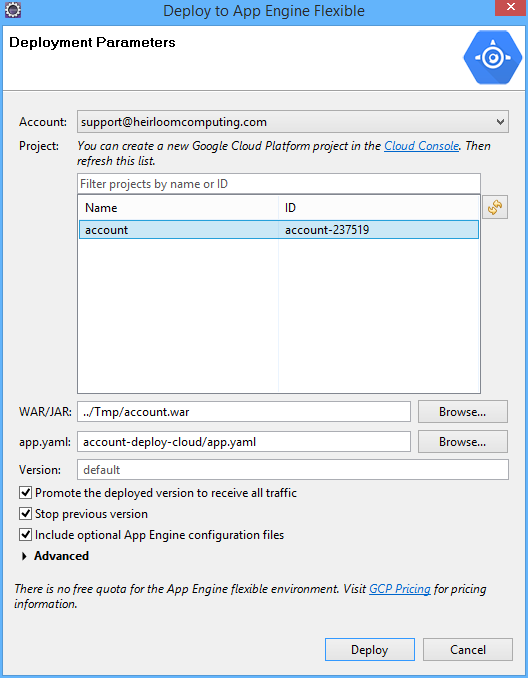

STEP 2: Deploy. We’re going to use the Google Eclipse plugin to login to our Google Cloud Account, select the application project (that we setup above), point it at the “account.war” package that we created using the Heirloom SDK, and deploy.

As soon as the deploy button is hit, the plugin creates a Google App Engine environment for our application. The specification for the environment is contained within the “app.yaml” file, which for this demo, looks like this:

runtime: java
env: flex

handlers:
- url: /.*
  script: this field is required, but ignored

env_variables:
  JETTY_MODULES_ENABLE: websocket

network:
  session_affinity: true

The key items in this specification are “runtime: java” (i.e. give me an Eclipse Jetty instance) and “env: flex” (i.e. give me instances that are provisioned as Docker containers). The other item worth mentioning is “network: session_affinity: true”. This provides “sticky sessions” between the application client (which will be a web browser) and the application. Since online CICS mainframe applications are pseudo-conversational, maintaining the relationship between the client and multiple transactions within the same session is a requirement.

Once the deployment process is complete, a URL for the deployed service will be provided.

No alt text provided for this image

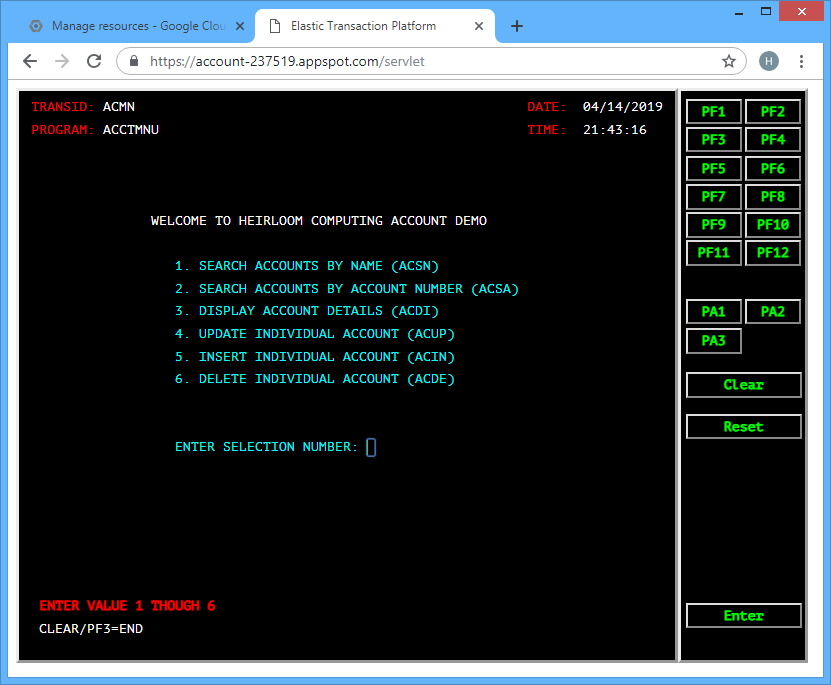

STEP 3: Execute. Simply grab the URL and point your browser at it.

No alt text provided for this image

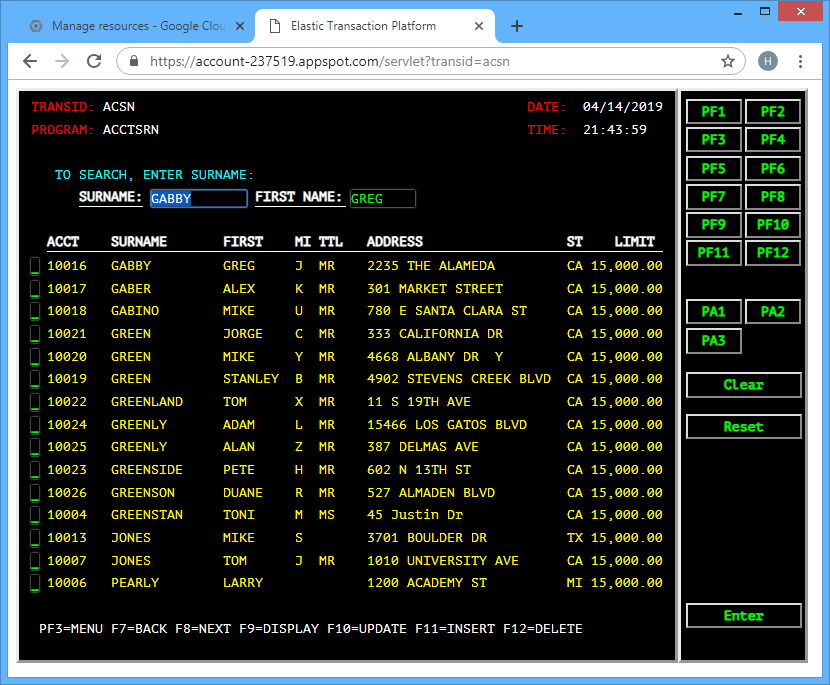

… enter 1, and …

No alt text provided for this image

Obviously, there’s a lot of other capabilities built-in here, such as remote debugging, application monitoring, etc. With web applications, it’s often useful to review the server log, so as an example, this is how it can be done with GAE’s CLI:

$ gcloud app logs tail -s default
No alt text provided for this image

What you’re seeing here is all the COBOL DISPLAY (debug) statements that were emitted by the COBOL/CICS “account” application.

Summary

Serverless compute infrastructures can dramatically accelerate your IT and business agility (sorry, Jules).

Your mainframe workloads can exploit serverless compute infrastructures like Google App Engine (and others such as AWS LambdaAzure App ServiceOpenShift KnativePivotal PSF, …).
